RTA Series

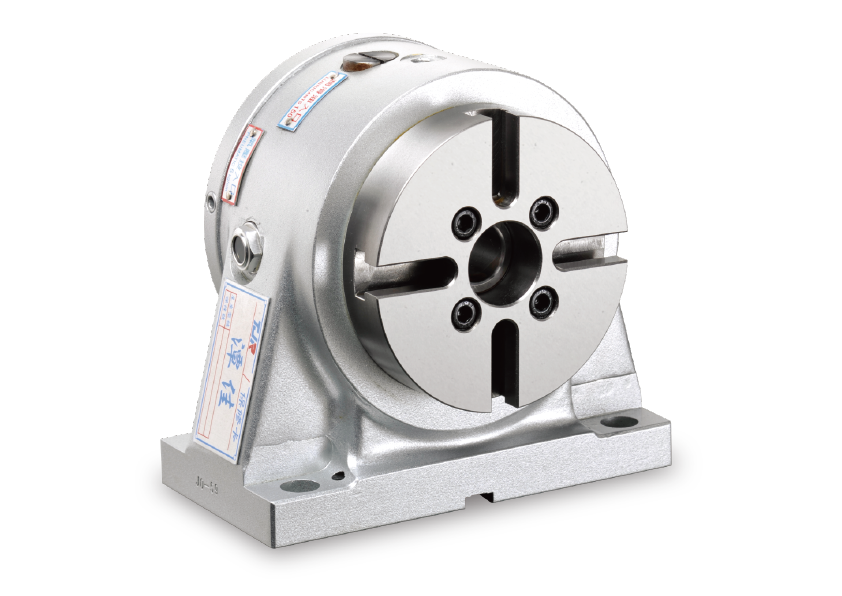

RTA-125

Table diameter(mm): Ø125

Center height (Vertical)(mm): 110

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Pneumatic (0.6 / 6)

Allowable workpiece load (Vertical)(kg): 50

Net weight ( sever motor excluded)(kg): 18

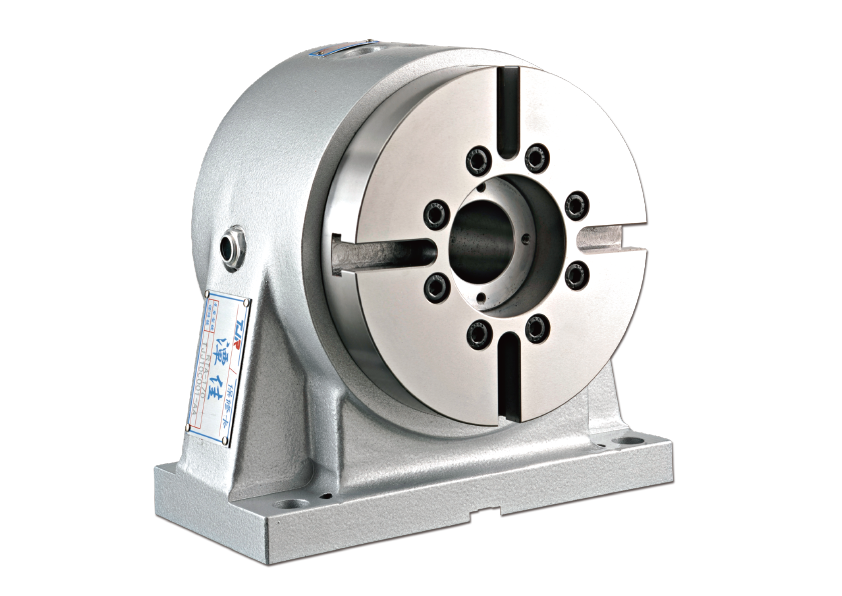

RTA-170

Table diameter(mm): Ø170

Center height (Vertical)(mm): 135

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Pneumatic (0.6 / 6)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 29

RTA-170H

Table diameter(mm): Ø170

Center height (Vertical)(mm): 135

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 29

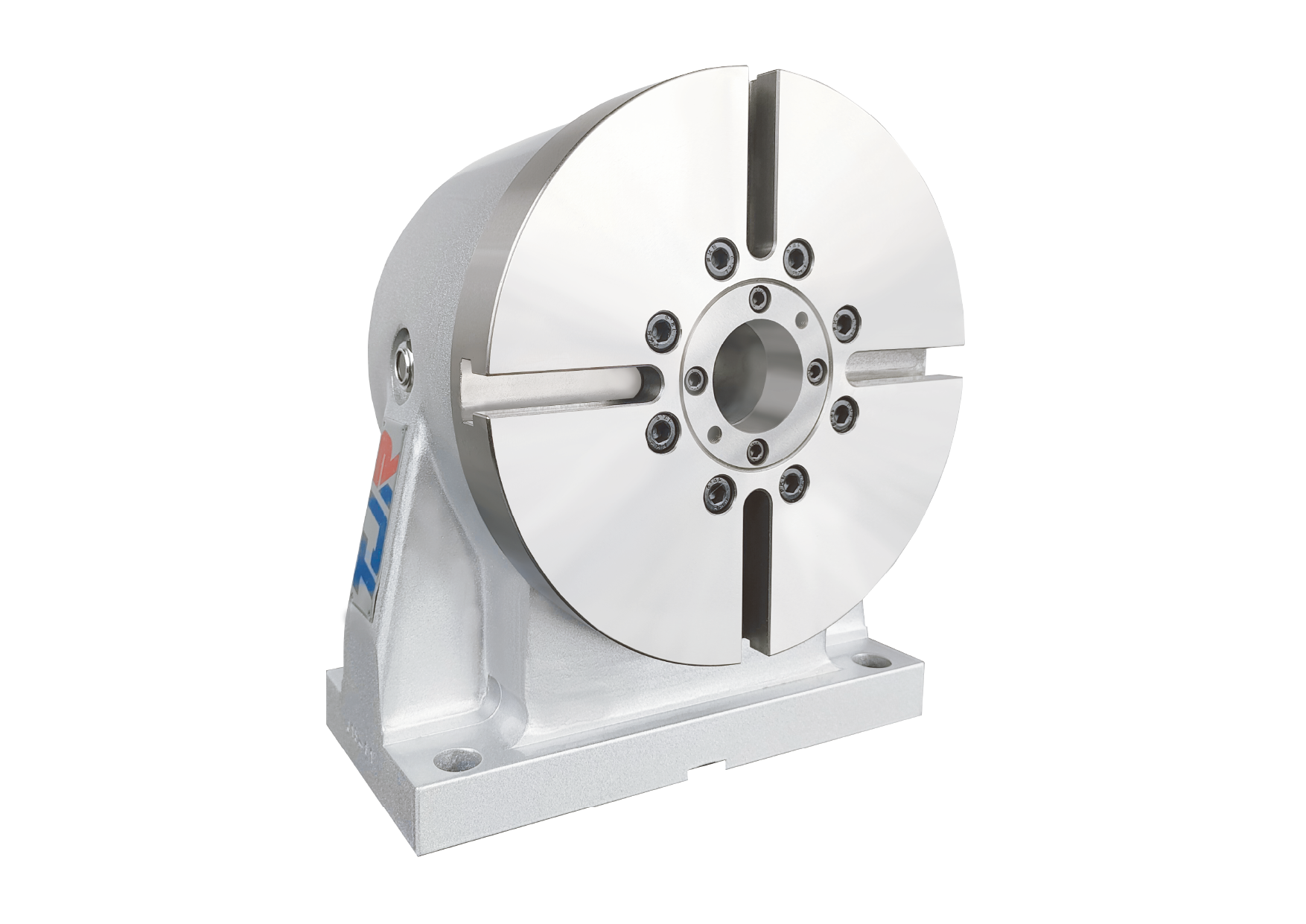

RTA-210

Table diameter(mm): Ø210

Center height (Vertical)(mm): 160

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Pneumatic (0.6 / 6)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 35

RTA-210H

Table diameter(mm): Ø210

Center height (Vertical)(mm): 160

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 35

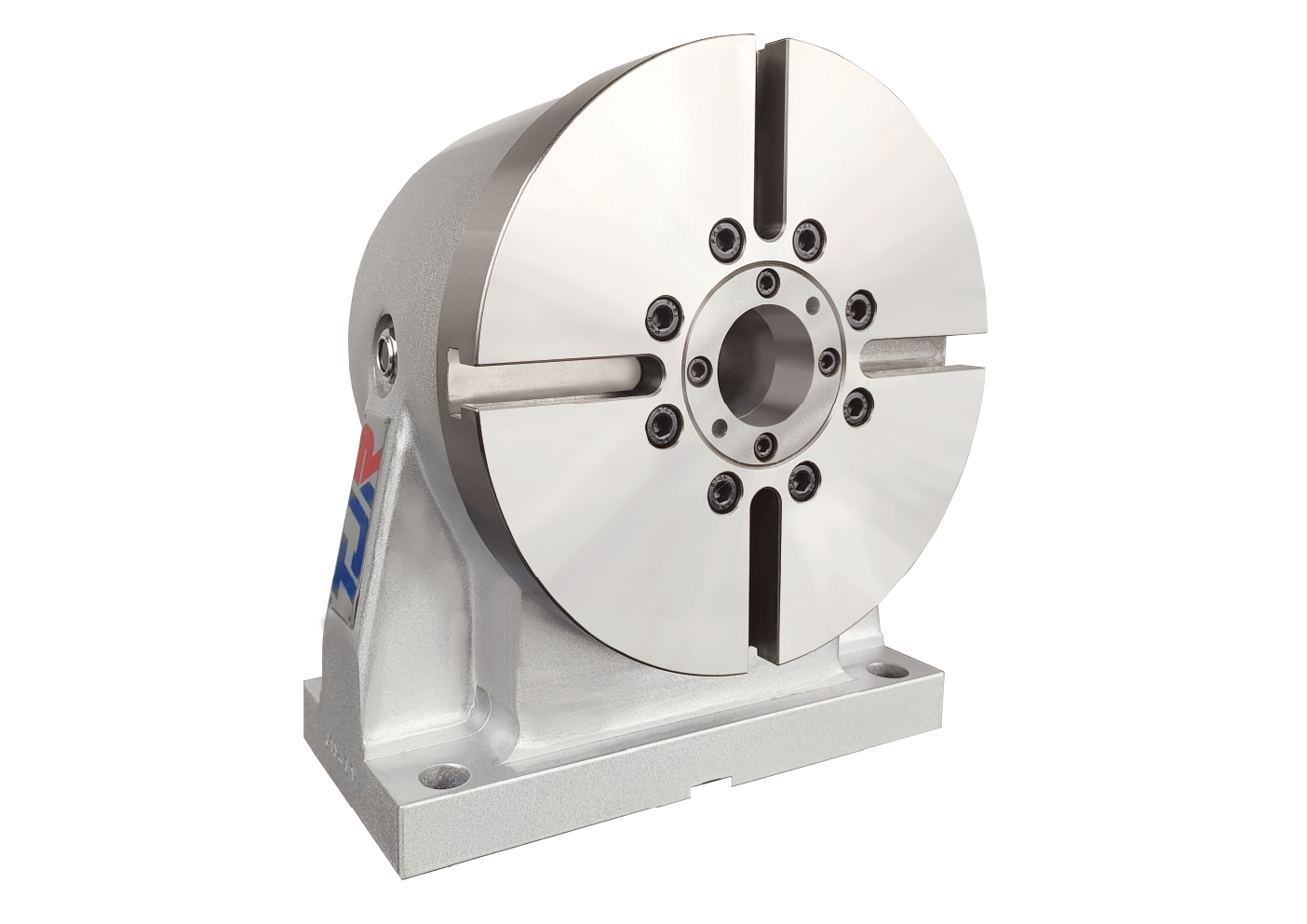

RTA-250

Table diameter(mm): Ø250

Center height (Vertical)(mm): 160

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Pneumatic (0.6 / 6)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 38

RTA-250H

Table diameter(mm): Ø250

Center height (Vertical)(mm): 160

Table T-slot width(mm): 12H7

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Net weight ( sever motor excluded)(kg): 38
