Specification
Item
Data

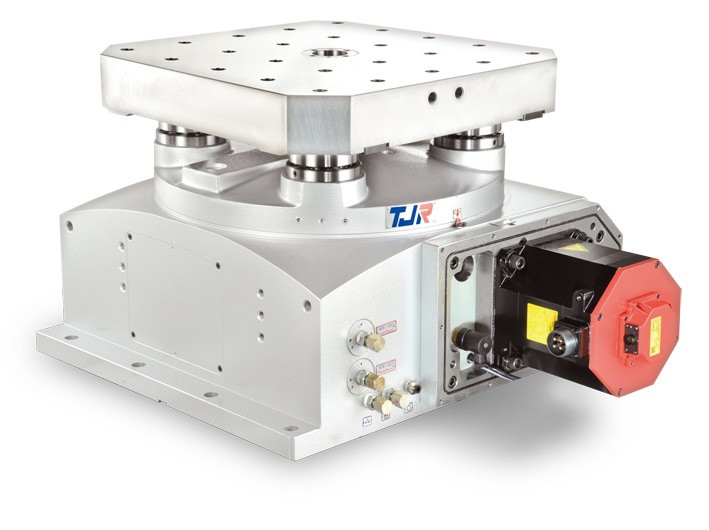

Dual pallets rotary table : CHR-500 (0.001°)
Installation Mode
Integrated
Table T-slot width(mm)
18H7
Guide block width(mm)
18h7
Min. increment(deg.)
0.001
Indexing precision(sec.)
15
Repeatability(sec.)
6
Clamping system (MPa / kg/cm²)
Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)
370
Servo motor model(FANUC)(Straight shaft without key)
αiF12 / ßiS22
Servo motor model(MITSUBISHI)
HG-204
Speed reduction ratio
1:180
Max. rotation rate of table(min-1)
16.6
Allowable workpiece load (Horizontal)(kg)
500x2(Two pallets)
Driving torque(N.m / kgf·m)
250
Table size(mm)
□500x500
Diameter of table central hole(mm)
Ø50x27 deep
Table height(cm)
445
Clamping force of positioning cones(35kg/cm²)(kgf)
960x4=3840
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

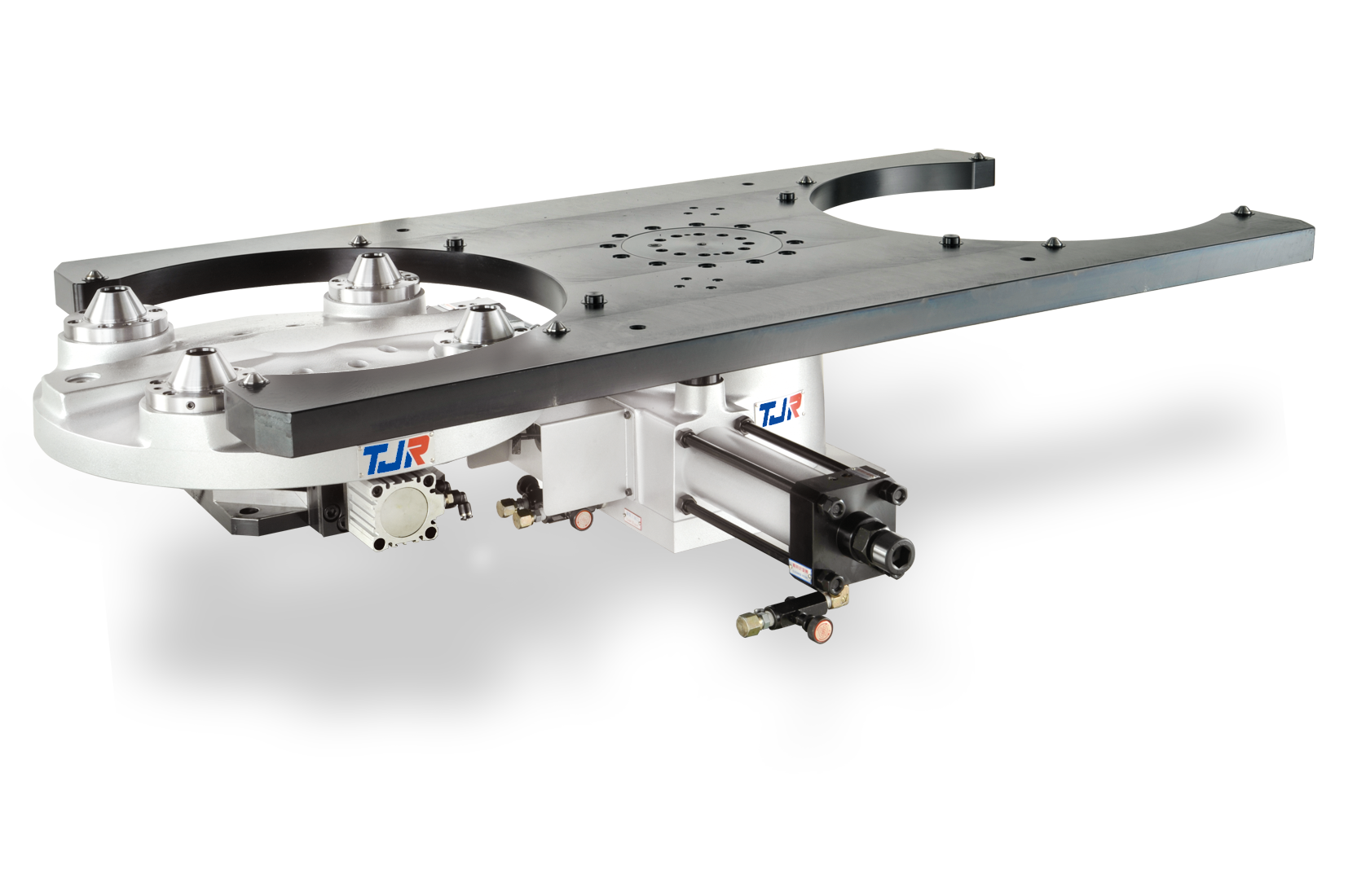

Tray type auto pallet changer : CTH-500
Auto Pallet Changer CTH - Installation Mode
Integrated
Lift-up mechanism
Tray type ( H type )
Auto Pallet Changer CTH - Table size(mm)
670 x 1290
Rotation method
Hydraulic hirth coupling
Rotation angle(deg.)
180° to and fro
Auto Pallet Changer CTH - Clamping system (MPa / kg/cm²)
Hydraulic (3.5 / 35)
Positioning method
Cone positioning
Clamping force(35kg/cm²)(kgf)
960x4=3840
Operating System(Up & Down & Rotate)(kgf/cm²)
Hydraulic 45 (Hyd. 45)
Lifting thrust force(kgf)
2860
Up and down travel of the pallet(mm)
60
Auto Pallet Changer CTH - Allowable workpiece load (Horizontal)(kg)
500x2(Two pallets)
Inspection accuracy / Repeatability accuracy on positioning of the same pallet (mm)
0.01
Inspection accuracy / Max. positioning tolerance for 2 pallets (mm)
0.02
Inspection accuracy / Parallelism of pallet top and base bottom (mm)
0.02

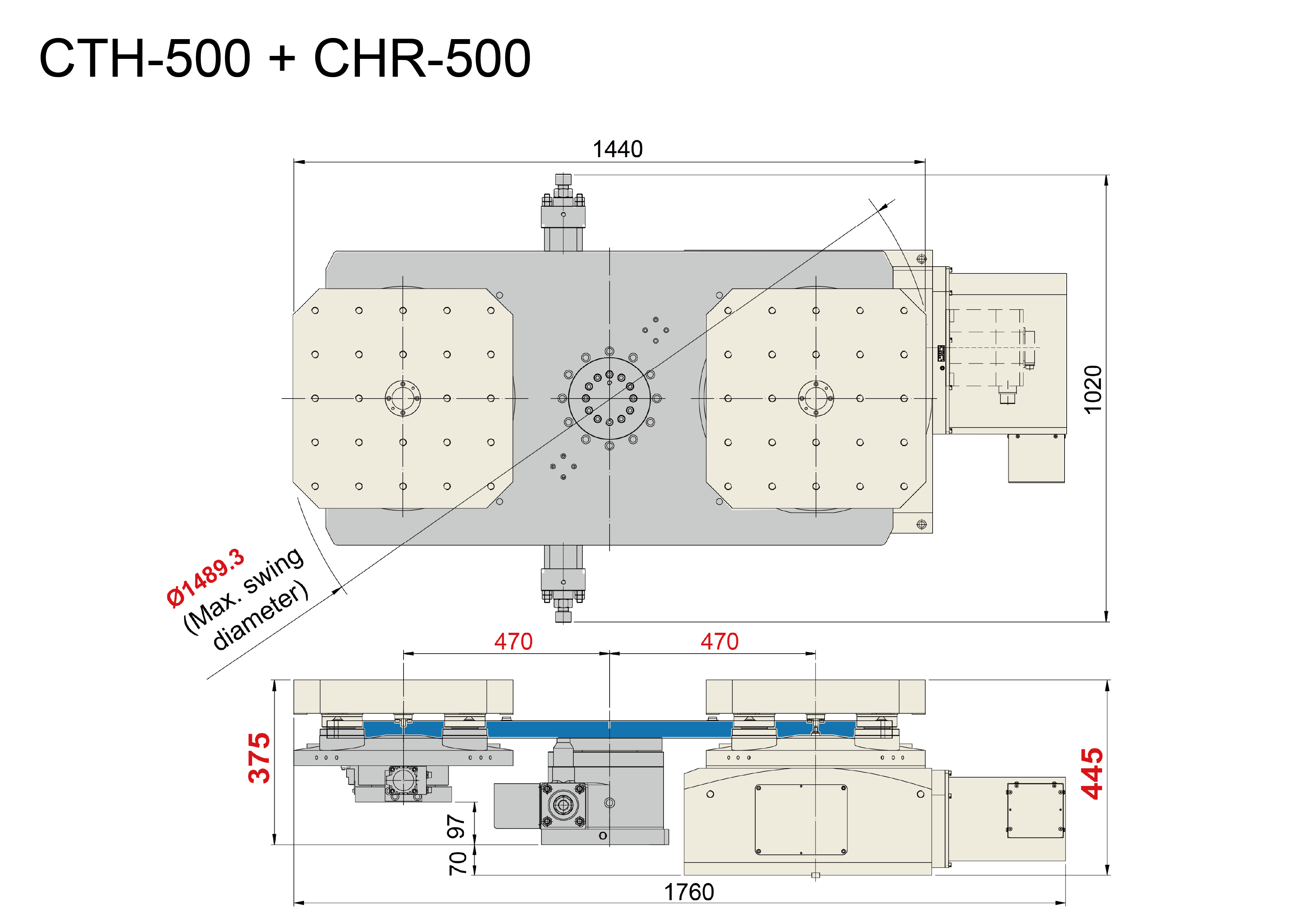

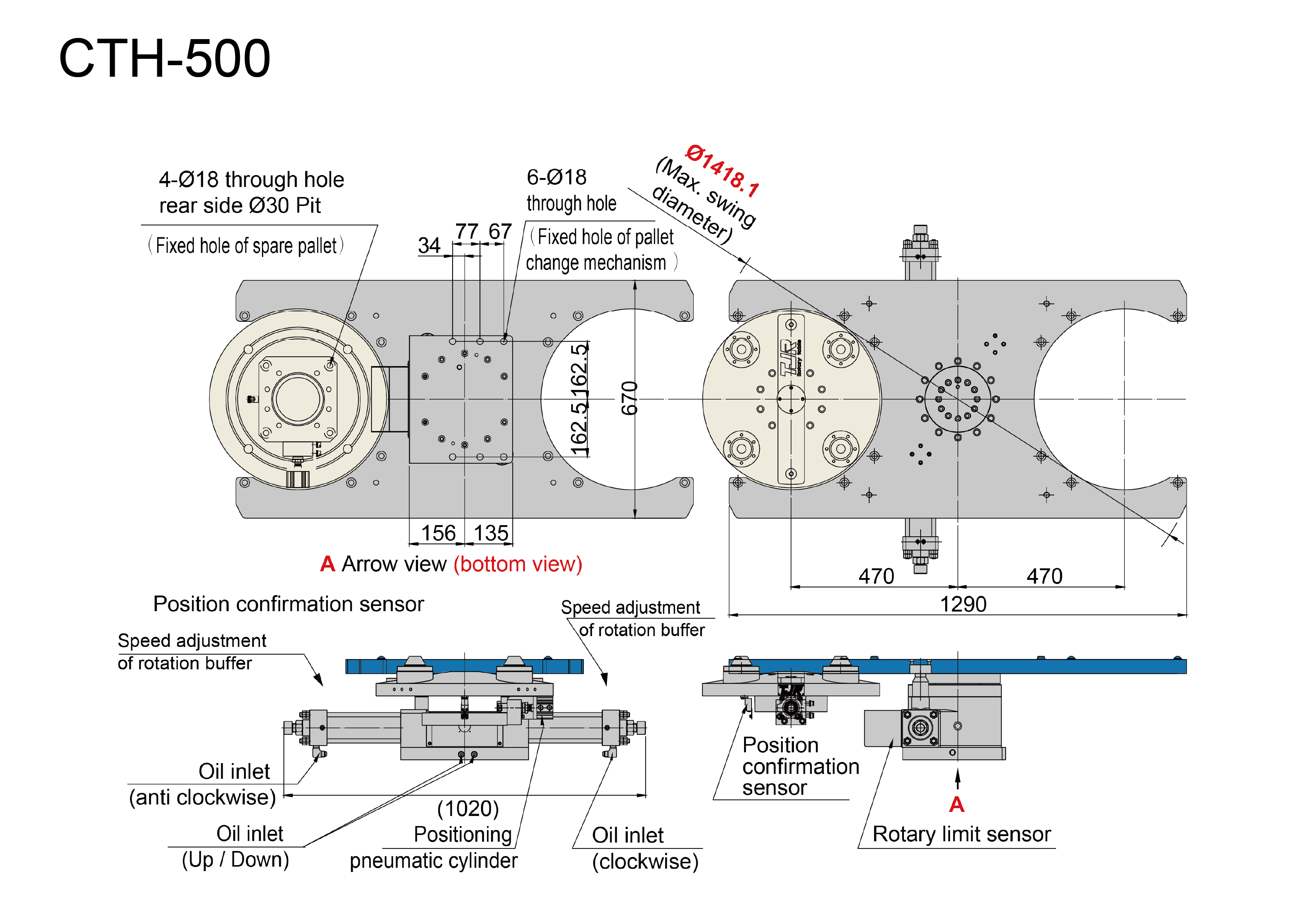

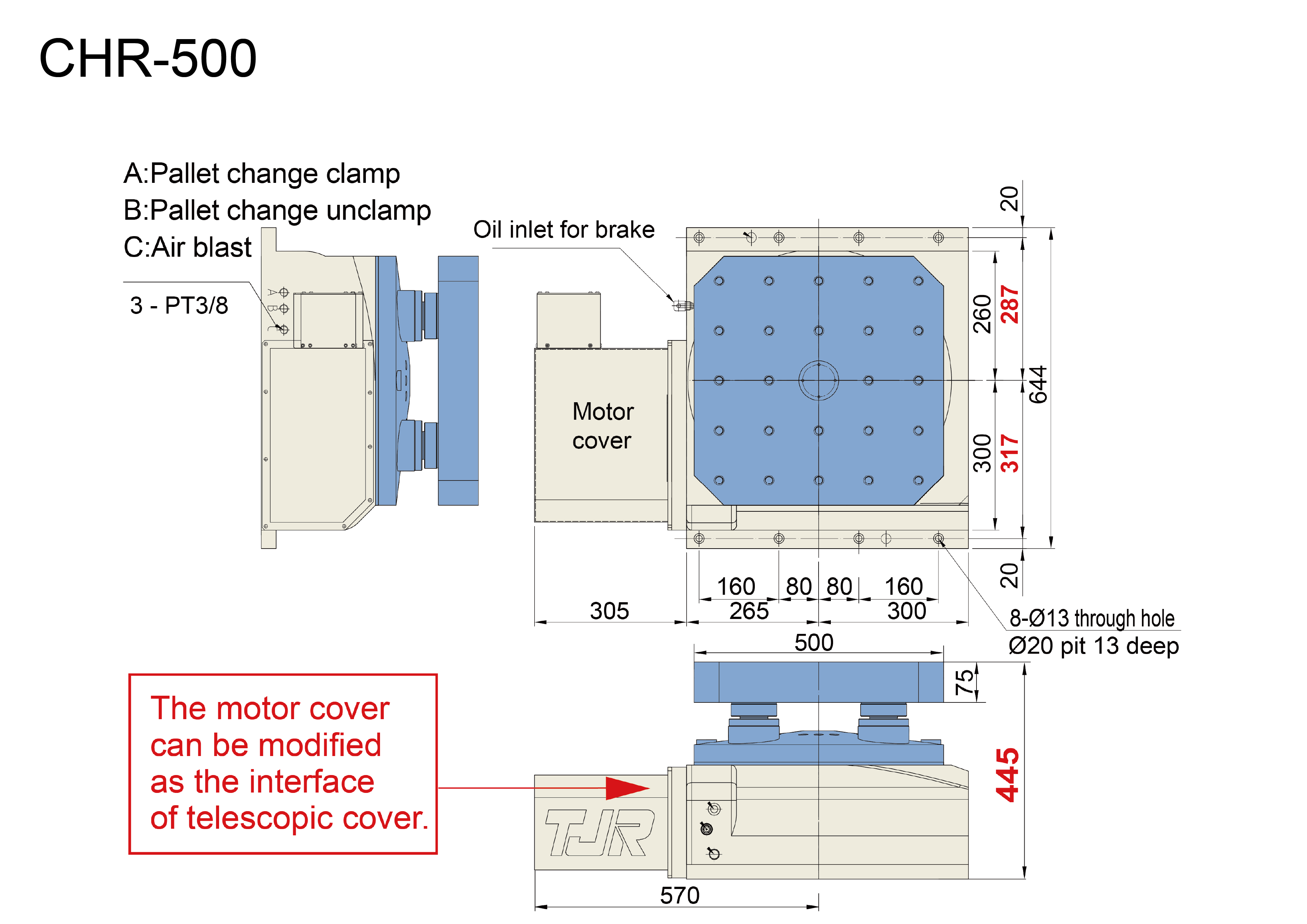

Dimension
