Specification
Item
Data
Application
Horizontal
Installation Mode
Integrated
Table diameter(mm)
Ø650
Inner diameter of mandrel sleeve(mm)
Ø50 x 30deep
Table T-slot width(mm)
18H7
Transmission Mechanisms
Direct Drive
Min. increment(deg.)
0.001
Cooling System
Water Cooling
Indexing precision(sec.)
20
Repeatability(sec.)
4
Clamping system (MPa / kg/cm²)
Hydraulic(35)
Clamping torque(N.m / kgf · m)
37 / 3.7729
Servo motor model(FANUC)(Straight shaft without key)
DD Motor
Servo motor model(MITSUBISHI)
DD Motor
Speed reduction ratio
Direct Drive
Rated / Max. Speed(r.p.m)
80 / 210
Rated / Max. Cutting Torque)(Nm)
554 / 741
Allowable workpiece load (Horizontal)(kg)
400
Allowable thrust load (with rotary table clamping) F (N / kgf)
40000 / 4078.8
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)
5000 / 509.8
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)
3700 / 377.2
Net Weight (D.D motor included)
479
＊1
Axial force applied 1 meter from table surface.

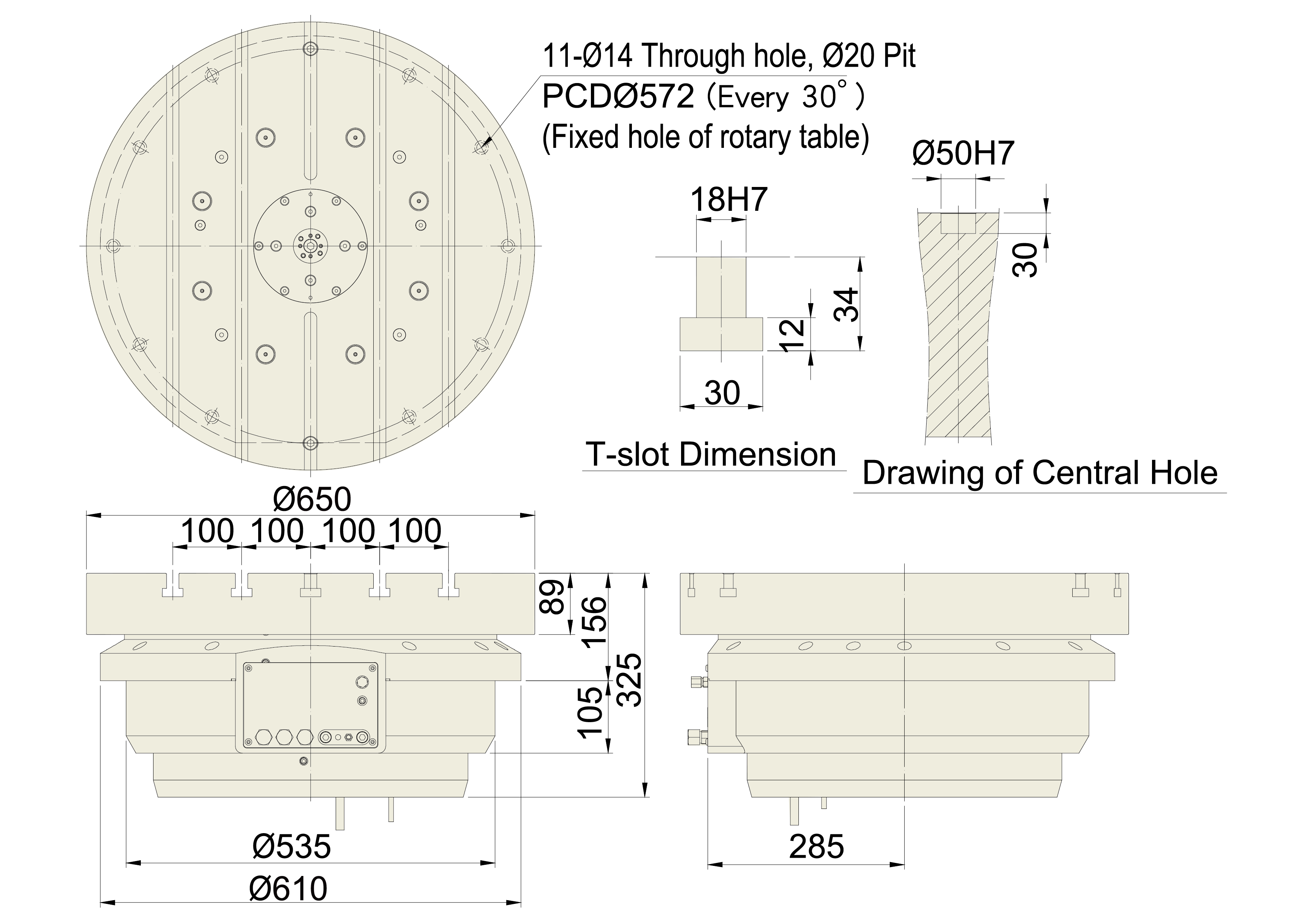

Dimension
